Product Description:
A Pneumatic Drilling Rig is a powerful and versatile drilling rig tool designed for various drilling applications. This high-performance hydraulic drilling rig is equipped with impressive features to ensure efficient and precise drilling operations.

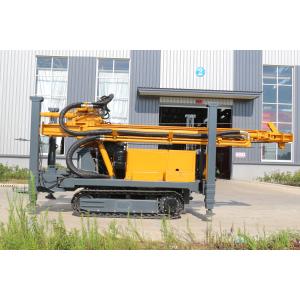

ZB350S Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
ZB350S crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
ZB350S deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
In summary, the Pneumatic Drilling Rig is a versatile and powerful hydraulic drilling rig tool that offers impressive rotation torque, hole diameter flexibility, rod size options, efficient gas consumption, and high operating pressure capabilities. Whether you are working on construction projects, mining operations, or geological surveys, this drilling rig is a dependable choice that will meet your drilling needs with precision and efficiency.
Features:
>>The drilling rig can use air DTH Hammer drilling and mud drilling.
>> Centralized control console is suitable for each manipulation and control.Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
>> The main drive system, the transfer case gearbox, double-winch unit, mud pump,turntable,drilling tower, feed system are setup on the chassis.
>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay,sand and rock if it is equipped with suitabledrilling bit. >> The power of drilling rig comes from a diesel engine,55kw Quanchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.
>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
>> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
>> The tools winch winch is used for auxiliary lifting and casin.
>> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
>> Competitive in price, low cost of maintain.
Technical Parameters:
| Technical parameters |
Unit |
ZB350S |
| Max drilling depth |
M |
350 |
| Drilling diameter |
mm |
105-350 |
| Air pressure |
Mpa |
1.2-3.5 |
| Air consumption |
m³/min |
16-55 |
| Drill pipe length |
m |
3/6 |
| Drill pipe diameter |
mm |
89/102 |
| Lifting force |
T |
16 |
| Fast lifting speed |
m/min |
30 |
| Fast feeding speed |
m/min |
55 |
| Max rotary torque |
Nm |
8500/4250 |
| Max rotary speed |
r/min |
80/160 |
| winch lifting force |
T |
1.1/2.5
(Optional) |
| Jacks stroke |
m |
1.5 |
| Drilling efficiency |
m/h |
10-35 |
| Moving speed |
Km/h |
2.5 |
| Uphill angle |
slope |
21° |
| Weight of the rig |
T |
7.5 |
| Size |
m |
5.78*1.7*2.25 |
| Engine |
/ |
(Yuchai Power)
91KW |
| Working condition |
Unconsolidated formation and stone head |
| Drilling method |
Top drive hydraulic rotary and pushing hammer or mud drilling |
| Matched DTH hammer |
Medium and high air pressure series |
| Optional accessories |
Mud pump,Centrifugal pump,Generator,foam pump |
Support and Services:
Our Product Technical Support and Services for the Pneumatic Drilling Rig include:
- On-site installation and commissioning
- Troubleshooting and diagnostics
- Regular maintenance and servicing
- Training for operators and maintenance personnel
- Spare parts availability and quick delivery
FAQ:
Q: What is the brand name of this pneumatic drilling rig?
A: The brand name of this pneumatic drilling rig is Shandong Zhengyuan.
Q: What is the model number of this pneumatic drilling rig?
A: The model number of this pneumatic drilling rig is ZB350S.
Q: Where is this pneumatic drilling rig manufactured?
A: This pneumatic drilling rig is manufactured in Shandong Province.
Q: What type of drilling rig is the ZB350S model?
A: The ZB350S model is a pneumatic drilling rig.
Q: Can this drilling rig be used for industrial purposes?
A: Yes, this pneumatic drilling rig is suitable for industrial use.
